Offset Smoker
Custom smokers based on the Texas style offset smoker.
Fabricated out of propane tanks or rolled mild steel.
Custom sizes and styles are available upon request.
If you would like to view a video on the design check out my Youtube channel
Rolled Mild Steel
-Constructed from 1/4" rolled mild steel
-48" length and 24" Diameter Smoke Chamber
-22" Diameter Round Firebox
-6 1/4" Diameter Stack
Diameter and length are customizable, up to 30" in Diameter and 48" in length

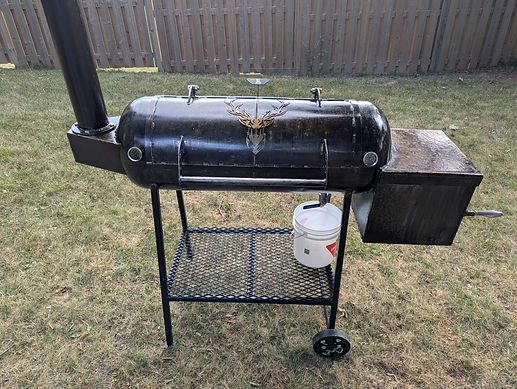

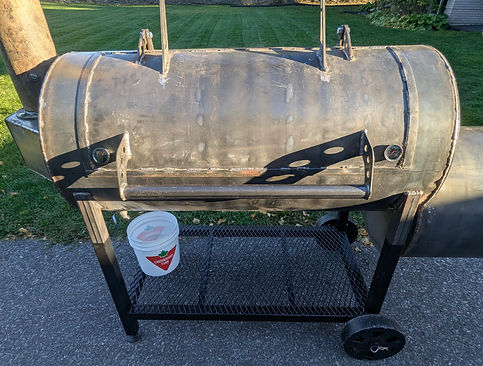

Propane Tank
-Fabricated from a 100lb propane tank with 1/8" wall thickness
- 14 1/4" x 33" grill.
- 1/4" steel firebox
- 4" Diameter stack
Other Propane tank sizes are available, such as 200lb and 420lb
About The Design
The firebox is fabricated from 1/4" mild steel for a balance between retaining and bleeding heat. This helps with temperature control and allows the fire to remain large enough so it is easier to maintain but also doesn't get too hot.
The smoke stack has a large diameter of 4" to 7" and a height of 3 to 6ft to ensure there is enough air flow.
These dimensions are dependent upon the total smoker chamber volume.
The smoker includes:
- Dual temperature gauges to help with temperature control on both sides of the cook chamber
- A removable scoop baffle plate for even heat distribution
- A ball valve and 2 gal bucket for easy grease collection
- A adjustable firebox door for temperature and smoke concentration control
- A stack damper for airflow control and even temperatures in the cook chamber
Custom metal cutouts on the cook chamber lid and firebox door are also included for a personalized look
